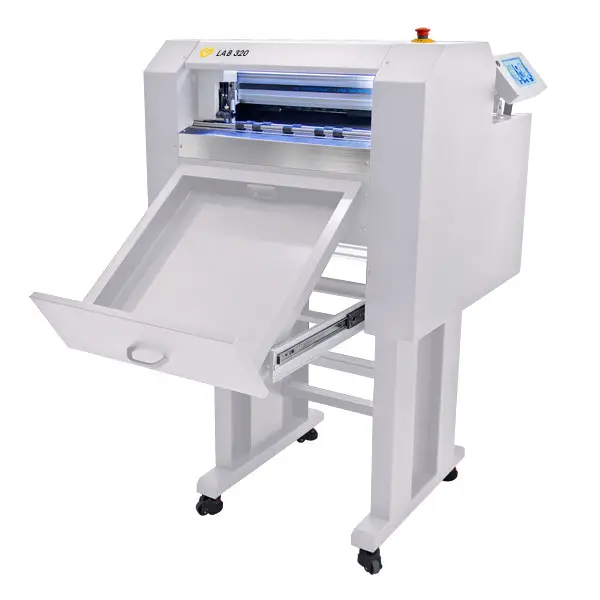

Gulmen Digital – LAB320 Sheet Plotter Cutter

The Gulmen Digital – LAB320 Sheet Plotter Cutter is a high-precision, sheet-fed cutting system designed for versatile finishing tasks, including die cutting, half cutting, full cutting, indentation, spot cutting, and drawing.

Equipped with a dual-knife head design, a 7-inch touchscreen interface, and CCD digital camera positioning, the LAB320 delivers exceptional accuracy and smooth operation for a wide range of materials, including paper, coated paper, stickers, Kraft paper, PVC, and PET. With vacuum adsorption feeding, multi-mode connectivity, automatic camera calibration, and professional software integration, the LAB320 offers a flexible and intelligent solution for sheet-based digital finishing workflows.

0.00 Ft 0.00 Ft Tax Excluded













This combination does not exist.

Core FeaturesBenefitsIdeal ApplicationsOperational AdvantagesSystem Specifications

Core Features

  • Dual knife head design for die-cutting and indentation
  • 7-inch full-touch operation interface
  • Supports half-cut, full-cut, spot-cut, indentation, and drawing modes
  • Vacuum adsorption feed eliminates static for special papers
  • CCD digital camera for precise positioning and calibration
  • Multi-mode connectivity: USB, U-disk, LAN, WiFi
  • QR code cutting and online/offline operation
  • High-power brushless servo motor control
  • Compatible with CutStudio, Illustrator, and CorelDRAW plug-ins
  • Optimized for smooth point-break cutting to reduce knife lift frequency


Benefits

  • Provides extremely flexible cutting options for diverse material types
  • Achieves high-accuracy positioning with CCD camera calibration
  • Allows fast and intuitive control through the touchscreen interface
  • Multi-connection modes improve workflow versatility
  • Perfect for short runs, prototypes, custom labels, and premium packaging
  • Handles a variety of media, including PVC, PET, Kraft, and stickers


Ideal Applications

The LAB320 is ideal for print shops, packaging studios, and finishing departments that require precise sheet-based cutting for short-run or customized production. It is particularly valuable for creating product labels, packaging samples, gift cards, custom stickers, stationery, and small-batch premium designs. Its compatibility with various materials and ability to process A3+ sheets make it suitable for businesses producing high-value, detail-sensitive products.


Operational Advantages

The LAB320 offers a seamless, intelligent cutting workflow, thanks to its vacuum suction system, high-power servo motor, and CCD camera positioning. Operators can easily switch between cutting modes, while QR code hybrid cutting enables fast job recognition and workflow automation. The touchscreen interface centralizes control for speed, force, tasks, and calibration, simplifying daily use. With stable sheet feeding, multi-machine control capability, and minimal knife-lift interruptions, the LAB320 supports efficient, precise operation with minimal user intervention.


System Specifications

Manufacturer

Gulmen Digital

Model

LAB320 Sheet Plotter Cutter

Cutting Method

Die-cutting, half-cut, full-cut, spot-cut, indentation, drawing

Cutting Heads

Dual tool holders (blade, creasing tool, pen)

Positioning Sensor

CCD digital camera

Control System

High-power brushless servo motor

Control Panel

7" capacitive touchscreen

Media Hold Method

Vacuum suction

Max Cutting Size

A3+ (330 × 483 mm)

Sheet Feeding Capacity

~12 cm stack (≈1000 sheets depending on thickness)

Scanning Speed

~5 s

Cutting Speed

15 – 1050 mm/s

Cutting Force

0–750 gf (blade & creasing)

Mechanical Resolution

0.02 mm

Repeat Precision

≤0.05 mm

Internal Memory

128 MB

Connectivity

USB, U-disk, LAN, WiFi

Compatible Software

CutStudio, AI/Corel plug-ins

Supported Media

Paper, coated paper, stickers, Kraft paper, PVC, PET

Working Power

Max 350 W

Voltage

100–120V / 200–240V, 50/60 Hz

Operating Environment

5°C–35°C, 30–75% RH

Dimensions

740 × 790 × 1360 mm

Package Size

970 × 970 × 850 mm

Weight

117 ± 5 kg (Net) / 149 ± 5 kg (Gross)

Key Features of Chirip RIP Software


High-Speed Rasterisation Engine

As of now, Chirip processes PDFs into high-quality raster output with optimised multi-core performance, reducing processing time in production environments.

Advanced Colour Management (ICC-Based)

Supports full ICC workflows, including:


  • Device-link profiles
  • Grayscale and black preservation
  • Spot colour and named colour (like Pantone and RAL) replacement


Ensures consistent and predictable colour output across different print jobs and devices.

RIP Software for Multiple Printing Technologies

Chirip is designed to work across:


  • Industrial inkjet printing systems
  • Digital printing environments
  • Professional printing solutions

This flexibility allows long-term scalability and compatibility with evolving printing technologies.

Headless RIP Engine for Automation

The core RIP engine operates via command-line interface (CLI), enabling:


  • Full automation
  • Server-side processing
  • Integration into production pipelines


Ideal for OEMs and automated print systems.

Modular and Scalable Architecture

Chirip can be deployed as:


  • A standalone RIP system
  • A fully integrated OEM component
  • A scalable multi-system solution

Is It for You?

Chirip is designed to meet the industry’s current and future requirements while maximizing quality and productivity.

Discover more Contact us

Use Cases for RasterMaster

OEM & Integration Use Cases

(Primary)

Embedding a RIP engine into new printer systems

Replacing or upgrading legacy RIP components

Building automated print workflows

Developing custom printing solutions

Production Use Cases

(Secondary)

Increasing print throughput

Improving color consistency

Reducing manual workflow steps

Supporting complex print jobs

Who Should Use Chirip?

Printer manufacturers (OEMs)


Industrial print service providers


Engineering and R&D teams


System integrators


Software developers working with printing technologies


Product Packages

Chirip packages are designed to scale across different printing technologies and operational needs, from integration-focused OEM environments to fully managed production workflows.

Discover more Contact us

Chirip Core

The foundation for high-performance rasterization and automated workflows. Best suited for OEMs, developers, and system integrators who require a headless, integration-ready RIP engine.

Chirip Pro

Extended functionality with user interfaces and workflow control. Best suited for print environments that require both performance and operational control through a user interface.

Chirip Fusion

Customized solution designed to meet specific integration requirements. Best suited for OEMs and partners with specific technical or architectural needs.

Features of the Product Packages​

Output & Verification
  • Flexible composing and sending printer-compatible data streams
  • Bilevel data preview and verification
Platform support
  • Linux (Debian-based distributions)
  • Windows (10 and above)
Color Management
  • Advanced color profile management and assignment (ICC)
  • DeviceLink profile support and generation (ink limiting, color mapping)
  • Open spot color system with custom color libraries and flexible mapping workflows
  • Color profiling workflow support (measurement-based)
  • Grayscale and black channel preservation

Chirip Core

High-performance rasterization and automation for OEMs, developers, and integrators needing a headless, integration-ready RIP engine.

Integration
  • Command-line interface for easy automation and integration across standalone devices and server environments
  • Full offline operation
Processing & Performance
  • High-performance processing (multi-threaded, hardware-accelerated)
  • Advanced variable data printing (VDP) engine with layered composition and blending support
  • Deterministic rendering and full reproducibility
Adaptive media size handling for cut-sheet and continuous printing
Color matching and color replacement
Cost estimation (ink, printhead usage, media)
Printer presets (device configuration)
Flexible copy and collation handling
Advanced print layout and imposition tools (positioning, scaling, rotation, bleed)
Desktop application for print project preparation
Full-featured REST API for workflow automation and integration

Chirip Pro

Enhanced functionality with UI and workflow control for high-performance print environments.

Advanced support agreement (dedicated support, SLA, maintenance)
Advanced job management, storage, and queueing
Print engine supervisor for integrated hardware control
Production analytics and reporting
Vision system integration
Custom OEM and system-level integration

Chirip Fusion

Customized solution for OEMs and partners with specific integration and technical requirements.

Service and Customer Experience

Besides delivering the software, we provide a structured and transparent collaboration model.




Technology

Direct technical support



Accessability

Transparent issue tracking



Availability

Continuous communication throughout integration and operation



Directives

Guidance during implementation.




Conversations

Technical consultation.



Personalization

Custom development when required

Next Steps

Ready to integrate Chirip into your workflow?


Contact with our team

Technical Specifications

For those interested in more detail, the full technical specifications are available below.


Discover more Contact us

Core CapabilitiesSystem ArchitectureSupported FormatsSystem CapabilitiesPerformance Security

Core Capabilities

  • High-quality rasterization in RGB and CMYK
  • ICC-based color management with device-link support
  • Custom dithering and screening engine
  • PDF-optimized processing
  • Multi-layer composition with blend modes

System Architecture

  • Modular and scalable design
  • Multi-threaded processing
  • CLI-based headless operation
  • REST API and service-based orchestration
  • Full offline operation

Supported Formats

  • Input:
    • PDF (Grayscale, RGB, CMYK, mixed)
  • Output:
  • Bi-level data
    • ORF (Ophrys Raster Format)
    • BMP (visualization)
  • Continuous tone
    • TIFF
  • PNG

System Capabilities

  • Operating Systems:
    • Windows 10+
    • Linux (kernel 6.0+)
    • macOS (planned)
  • Minimum hardware:
    • x64-based system
    • Dual-core CPU @ 2.0 GHz (AVX2)
    • 32GB RAM
    • 512 GB SSD
  • Recommended hardware:
    • x64-based system
    • Octa-core CPU @ 4.5 GHz (AVX-512)
    • 64 GB+ RAM
    • 1 TB NVMe SSD
  • Performance optimization tips:
  • RamDisk usage

Performance Security

  • Optimized for SIMD instructions
  • Multi-core scaling for high-speed processing
  • Hardware-bound licensing for secure and stable deployment
