Core Features
- Large-format flatbed table supporting 2× B2 or 1× B1 sheets
- Vacuum-suction media hold-down for stable cutting
- Digital servo motor system for smooth, accurate movement
- Full cut, half cut, perforation, creasing & plotting
- High precision: 0.1 mm repeatability
- Max cutting speed: 700 mm/s
- 4.3” color touchscreen operation panel
- Three tool positions (blade, creasing, calibration)
- HP-GL file language support
- USB, U-Disk & Ethernet connectivity
Benefits
- Handles large sheet formats for higher productivity
- No cutting dies required → instant job setup
- Enables fast, affordable packaging prototypes
- Reduces outsourcing and short-run finishing costs
- Ideal for medium-volume production and wide-format workflows
- Delivers clean, consistent quality across all shapes and materials
- Works with a broad range of substrates up to 600 gsm
Ideal Applications
- Large packaging mock-ups (B1, B2 cartons, boxes, sleeves)
- Wide-format sheet label production
- Structural design and prototype fabrication
- Cards, tags, display materials, and sheet-based signage
- Post-processing of inkjet & press-printed sheets
- Short-run or on-demand custom shape cutting
Operational Advantages

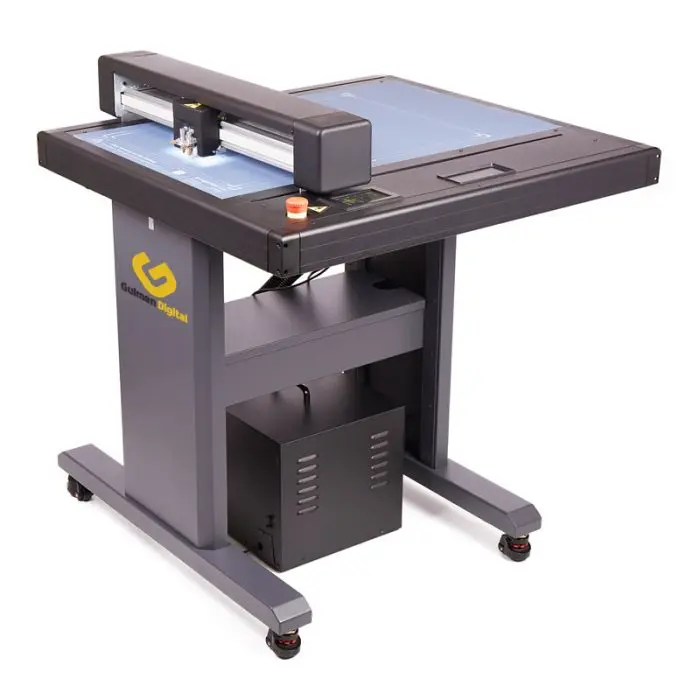

The GD700’s expanded work surface and powerful vacuum system keep large sheets perfectly flat, ensuring stable cutting even on challenging materials. Operators benefit from fast setup, simple tool switching, and die-free operation that speeds up both prototype and production workflows. The servo-driven system ensures precise, repeatable cuts with clean edges, making it a reliable finishing solution for professional print environments.
Technical Specifications
Manufacturer | Gulmen Digital |
Configuration | Digital servo system, flatbed |
Media Hold-Down | Vacuum suction |
Max Cutting Speed | 700 mm/s (10–700 mm/s) |
Cutting Pressure | Tool 1: 5.88N (600gf), Tool 2: 5.88N (600gf) |
Effective Cutting Area | 790 × 1085 mm |
Max Mountable Media (Y-axis) | 940 mm |
Minimum Character Size | 5 mm square |
Mechanical Resolution | 0.005 mm |
Programmable Resolution | HP-GL: 0.025 mm |
Repeatability | 0.1 mm |
Interfaces | USB 2.0, U-Disk, Ethernet |
Memory | 32 MB |
Command Set | HP-GL |
Number of Tools | 3 (Blade, Calibration, Creasing) |
Operating Screen | 4.3" LCD Touch |
Power Supply | 100–240VAC, 50/60Hz |
Power Consumption | 150 VA (machine), 550 W (vacuum pump) |
Operating Temperature | 10–35°C |
Operating Humidity | 35–75% RH |
External Dimensions | 1420 (Y) × 1212 (X) × 1050 (H) mm |
Packaging Dimensions | 168 × 153 × 61 cm (machine) / 67 × 61 × 42 cm (vacuum pump) |
Weight | 154 kg / 104 kg (machine) • 23 / 20 kg (vacuum pump) |
